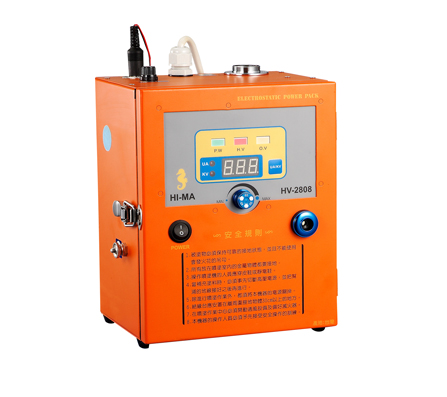

HV-2808R Electrostatic Power Pack


HV-2808R Electrostatic Power Pack

Product Name:
HV-2808R Electrostatic Power Pack
Products Specification:
  • Model: HV-2808R
  • High voltage output: DC-90KV
  • High voltage adjustment: -25KV~-90KV step-less
  • Power source voltage: AC110V/ 220V50/60HZ
  • Dimensions: 200 (W) × 150 (D) × 260 (H)
  • Weight 5.5 kg, not including the stand
Products Description:
  • The device is equipped with a load current indicator cover (LED) display. When there are excessively large currents, the system will automatically cut off the power and activate the buzzer alarm. This increases the safety of the device.
  • The high voltage uses a graduated step adjustment system which is suitable for all types of work pieces It's convenient for performing fine adjustments on the voltage.
  • The parts are made from high-tech precision ceramics and other special materials that can significantly extend their usage life.
  • The device uses an AC110V or 220V power supply which can be manually switched.
